HeavyD Combined Bearings – Adjustable Axial Roller

HeavyD™ Combined Bearing with Adjustable Axial Bearing

HeavyD™ Combined Bearings with Adjustable Axial Bearing – another fancy way of saying you can move the center roller up and down to adjust overall height of the bearing! This high load capacity cam follower is one tough and flexible roller bearing! It is the heavy duty bearing of all linear roller bearings …

The HeavyD™ Family – We’re OK with Heavy Weights

Also known as Combi Bearings, the HeavyD™ combination bearing is the ideal choice for any linear motion application that has high loads with a low precision requirement. The combined bearing has the added benefit of handling axial and radial forces simultaneously with an integrated axial roller set inside the radial roller bearing. Because of this unique property, these combi rollers are perfect for forklifts (mast guide bearings), palletizers and depalletizers, cranes and hoists, vertical and horizontal feed units, shrink wrappers and any other high load material handling applications. This particular bearing’s inner axial roller is adjustable to change the overall height if the bearing (H) – a feature that allows simplified integration in assembly.

HeavyD™ heavy duty linear bearings with adjustable axial (center) roller have part numbers: HD-454, HD-455, HD-456, HD-457, HD-458, HD-459, HD-460, HD-461, HD-462 and HD-463

Combined Bearings with Adjustable Axial Roller, Iron Roughneck Bearing

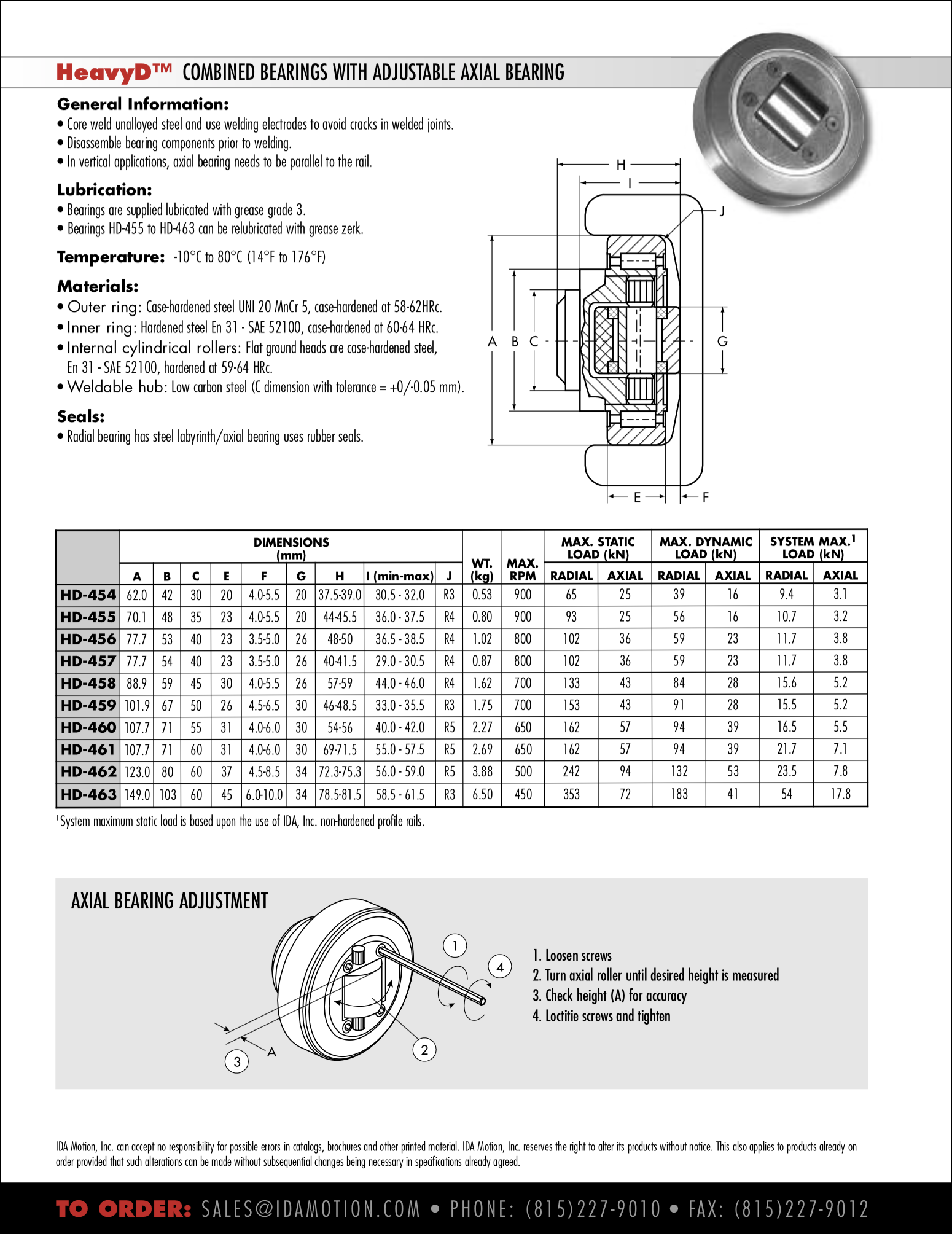

HeavyD Combined Bearing with Adjustable Axial Roller
